CUT-1
YOVON

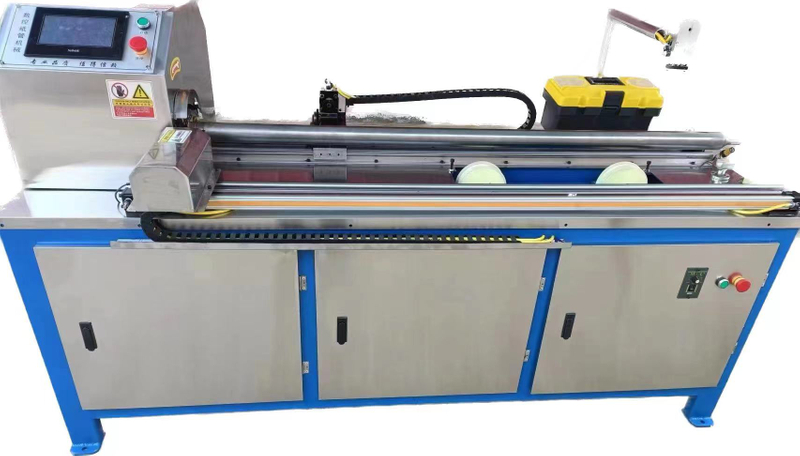

Full-Auto Single-Tool Paper Tubes Cutting Machine
Purpose: 1. The inner diameter of the 5mm about the paper tube is cut into a section of 2. It is suitable for cutting small paper tube with high yield. Characteristics: 1. Simple, easy to operate; 2. Pneumatic cutting, automatic discharge; 3. The speed is fast.
Technical parameter
Single knife CNC automatic finishing machine, effective length: 1300 / 1650 mm, suitable for ID25- -65 small-medium-sized cutting. Touch screen set parameters, divided into three sections or Multiple sections can be cut. Multiple alarm outages are provided. Cutting accuracy is at 0.15 mm. Host power: 1.1KW. Servo of 200 watts, gas source pressure of 0.6. Floor area: 1.5 m by 4 m. Total weight: about 500 kg. Standard with a mold, a blade, EXW 6800USD. Add the automatic transfer knife and add extra 200 USD one knife,
| NO | Technical requirements | Parameter | |
| 1 | Name | Full-auto single-tool paper tube cutting machine | |
| 2 | Type | Skq-1600 | |
| 3 | Function | Suitable for accurate cutting of paper tube width within 1620mm | |
| 4 | Range | Diameter 50-120mm Thickness 1-10mm | |
| 5 | Voltage | 380V three-phase four wire | |
| 6 | Main motor | 1.1KW | |
| 7 | transmission | Motor pulley drive | |
| 8 | Speed | 20000pcs/8h | |
| 9 | Loading method | Automatic loading | |
| 10 | Laying-off method | Automatic (servo motor controller) | |
| 11 | Cutting ways | Cutter shaft non-roll tube roll, tungsten steel knife cutting. | |
| 12 | Piecework system | Automatic | |
| 13 | Control system | PLC(xinjie) | |
| 14 | Operation panel | Touching screen(xinjie) | |
| 15 | Cut length | Servo motor(dongling) | |
| 16 | Electric brand | Renming | |
| 17 | Air pressure brand | AirTAC | |
| 18 | weight | 600kg | |
| 19 | Operation person | 1person | |
